Pulley & Ear Geometry
Mounting lug thickness, offset distance, and pulley groove count (serpentine vs V-belt) checked with vernier calipers.
Target: Lug offset ±0.2 mm
Electrical Generating • Austin Depot
Heavy-Duty Alternators Bench Tested Under Load
High-output replacement alternators for commercial machinery, generators, and utility equipment. Alternator output is verified on our bench tester under simulated 80-amp load before release.
High-Output Charging Specifications
Voltage droop ruins machine controllers. We verify diode ripple, regulator cutoff voltage, and stator resistance before clearing an alternator for Austin pickup or freight dispatch.
SKU: ALT-COMM-130A
Bench Load Passed
Every unit listed in our charging inventory is built around heavy-duty cast-aluminum front and rear end-frames, oversized sealed double-lip bearings, and high-temp enameled copper stator windings. Machinery charging circuits operate in extreme ambient conditions—high vibration, dusty air, and ambient summer temperatures exceeding 105°F across Texas worksites.
A common failure mode in standard replacement units is rectifier diode solder liquefaction under prolonged hydraulic cooling fan draw. When auxiliary lights and hydraulic oil coolers run simultaneously, field amperage reaches 85% of peak. Generic alternators fail within 40 operating hours. Our units utilize 12-diode heavy-gauge heat sinks and solid-state internal regulators rated for 125°C continuous engine bay heat.
Output Amp
130A Continuous
System V
12V / 24V Options
Regulator
Solid-State 14.4V
Bearings
Dual 2RS Sealed
| Electrical Parameter | Bench Tolerance | Rejection Threshold |
|---|---|---|
| Open Circuit Voltage (1800 RPM) | 14.2V – 14.6V regulated | Below 13.9V or above 14.8V |
| Amperage Output Under 80A Load | ≥ 82.5 Amps sustained | Below 78.0 Amps |
| AC Ripple Voltage (Diode Check) | < 0.25V AC Peak | ≥ 0.40V AC Peak (leaking diode) |
| Field Resistance (Slip Rings) | 2.4 – 3.2 Ohms @ 20°C | Open circuit or < 1.8 Ohms |
Bench Testing Protocols in Austin
Ivan Petrov verifies every unit against factory schematics before release. We spin-test every alternator before boxing to prevent field teardowns.

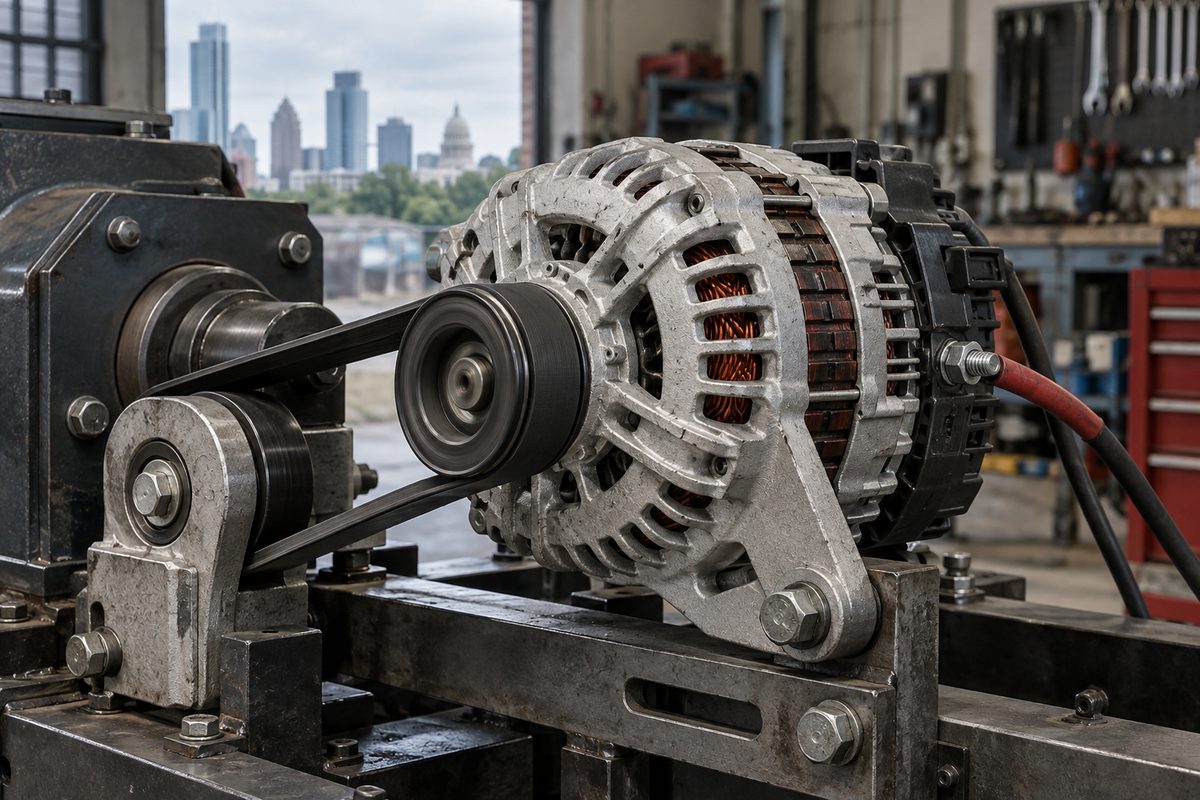

80-Amp Dynamic Load
Motor-driven spin test run through a progressive resistance bank simulating full commercial cab and hydraulic draw.
Target: 3-minute load test
Thermal Stability Check
Laser pyrometer inspection of rectifier casing to verify even thermal dissipation across all positive and negative diodes.
Target: < 15°C delta across bridge
Live Bench Calibration Log
Standard PassEvery unit leaves our Barton Springs counter with an attached inspection tag signed by Ivan Petrov detailing regulated cutoff voltage and peak current output under load.
Cutoff V
14.42 VDC
Current @ 2500 RPM
132.8 A
Bearing Runout
< 0.02 mm
Confirmed Pricing and Austin Logistics
Fixed operator catalog rate: $249.99 USD each. Quotes depend on exact model matching, shelf stock status, and freight destination.
Variable 1
Equipment Model
Machine engine make, displacement, and mounting flange type.
Variable 2
OEM Part Number
Factory SKU or aftermarket interchange verified by Ivan Petrov.
Variable 3
Connector & Pulley Photo
Cell photo showing terminal studs and serpentine pulley grooves.
Variable 4
Quantity Needed
Single unit replacement or commercial fleet holding batches.
Variable 5
Austin Shelf Stock
Same-day pickup at Barton Springs Road vs cross-dock staging.
Variable 6
Courier & Freight
Austin local collection or insured freight across Texas.
Texas Registered Business • 90-Day Parts Replacement Warranty
All alternators carry Texas business registration backing and our standard 90-day parts exchange warranty. If an alternator fails bench criteria or exhibits internal electrical breakdown within 90 days of invoice date, bring the unit to our Austin counter or contact us for an immediate direct replacement.
Application Scope & Refusal Policy
We do not guess on electrical compatibility. Knowing what we decline protects your machine wire harness from electrical fire.
-
Who this is for: Commercial fleet managers, industrial facility maintenance supervisors, and diesel mechanics who have verified machine system voltage (12V or 24V) and terminal connection studs.
-
Who this is not for: Operators looking for universal one-size-fits-all generic automotive alternators with mismatched mounting ears or incorrect pulley diameters that alter alternator drive ratios.
-
Refused applications: Custom home-built electrical conversions without circuit breakers, or machines operating with shorted starter batteries. Test your battery on our heavy-duty battery bench before installing a new alternator.
Review our other core catalogue systems: explore direct-fit fuel delivery pumps, examine severe-duty brake pad sets, or verify your unit on our machinery model identification guide.
Direct Parts Inquiry Desk
Provide your equipment model and old alternator markings. Ivan Petrov verifies mounting lug spacing and replies same business day.
